logic 50
Postad: 30 mar 2018 15:39

Spole och magnet

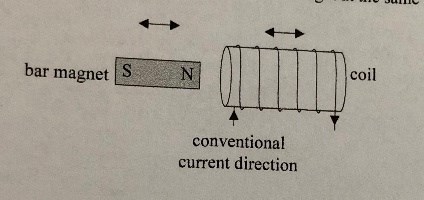

A coil and a man get can move horizontally to the left or to the right at the same speed.In which of the following will a conventional current be induced in the direction shown in the diagram when both the magnet and the coil are moving?



direction of motion of magnetdirection of motion of coilA.to the leftto the rightB.to the leftto the leftC.to the rightto the rightD.to the rightto the left



Mitt sätt att tänka ut:

Spolens northpole är på höger sida och southpole är på vänster sida. Jag kom fram till detta genom att använda höger-hand regeln då vi vet strömmen riktning är upp.

När jag hittade spolens poler så tänkte jag när ström skapas så är det antingen när spolen rör mot spolen eller ifrån. Jag hittade på nätet att om polerna på magneten och  spolen som då riktar mot varandra påverkar när vi får ström. Ström är induced när magneten rör sig mot spolen om magneten och spolens northpoles riktar mot varandra vice versa.

Jag undrar om det är rätt tänkt?

Påverkar tänket i och med att de rör sig med en hastighet både och.
